IoT Monitoring Devices for Smart Buildings

FeelPlace Measuring Devices provide data for IAQ Test System as well as Smart Building Solutions. The FeelPlace service package and all its measuring devices have been designed and manufactured in Finland. FeelPlace is the result of more than 10 years of product development. The design is based on the Seemoto system, which is currently e.g. in more than 350 Finnish pharmacies, hospital districts, laboratories and transport companies.

IAQS - Indoor Air Quality Sensor

FeelPlace Indoor Air Quality Sensor

Usage

▪ Real estate construction phase and life cycle measurements

▪ City and municipal properties (e.g. schools, kindergartens, public spaces)

▪ Any place where electricity is available, 110 - 240 V

▪ Not for outdoor use

Key Features

IAQ Sensor device measures the following quantities every 5 minutes: temperature, relative humidity, carbon dioxide, volatile organic compounds (TVOC), particulate matter (PM 0.5, PM 1.0, PM 2.5, PM4 and PM10), pressure difference between indoor and outdoor space and absolute air pressure.


IAQS+Presence feature includes relative sound and lightning measurements.

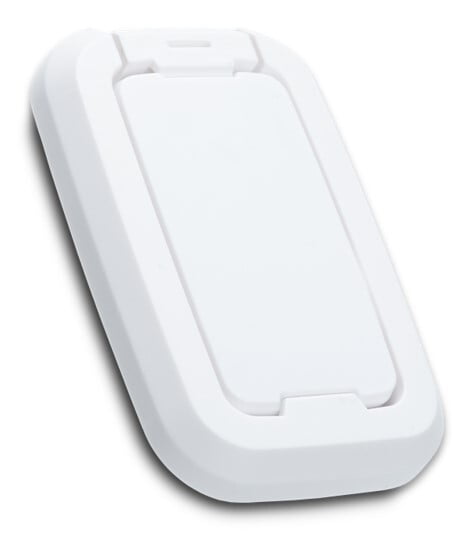

THS - Temperature & humidity sensor

FeelPlace temperature and humidity sensor

Usage

▪ Temperature and humidity critical targets

▪ Places where electricity is not available (battery operated)

Key Features

THS sensor device measures the following quantities every 5 minutes: temperature, relative humidity. Battery life 4-10 years.

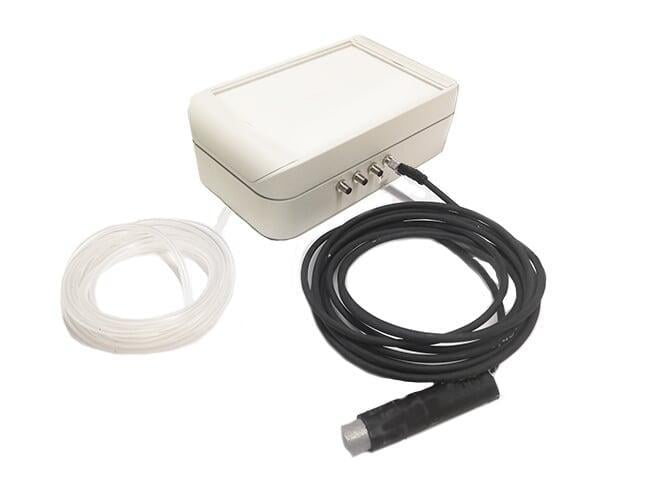

VES - Ventilation Efficiency Sensor

FeelPlace Ventilation Efficiency Sensor

Usage

▪ Real estate construction phase and life cycle measurements

▪ City and municipal properties (e.g. schools, kindergartens, public spaces)

▪ Any place where electricity is available, 110 - 240 V

▪ Not for outdoor use

Key Features

Measurement/monitoring of ventilation activity. Pressure difference between outdoor and indoor areas and/or between different parts of buildings. Cleanroom pressurization check. Measurement of temperature and humidity from building structures at different depths.



WIRED 4THS Structural Humidity

FeelPlace Structural Humidity Sensor

Usage

▪ Real estate construction phase and life cycle measurements

▪ City and municipal properties (e.g. schools, kindergartens, public spaces)

▪ Any place where electricity is available, 110 - 240 V

Key Features

Measurement / monitoring of of temperature and humidity from building structures at different depths. Each monitoring device can have up to 4 temperature/humidity monitoring probes.

FeelPlace Gateway

FeelPlace Wireless Gateway

Usage

▪  Enables wireless communication at the monitoring site for all FeelPlace sensors

Key Features

 Collects data from the wireless sensors and transmits it to the FeelPlace Cloud service.
